Ultravation® BioGardUV™ Upper-Room Germicidal UV-C Air Disinfection System
Price range: $1,030.00 through $1,906.00

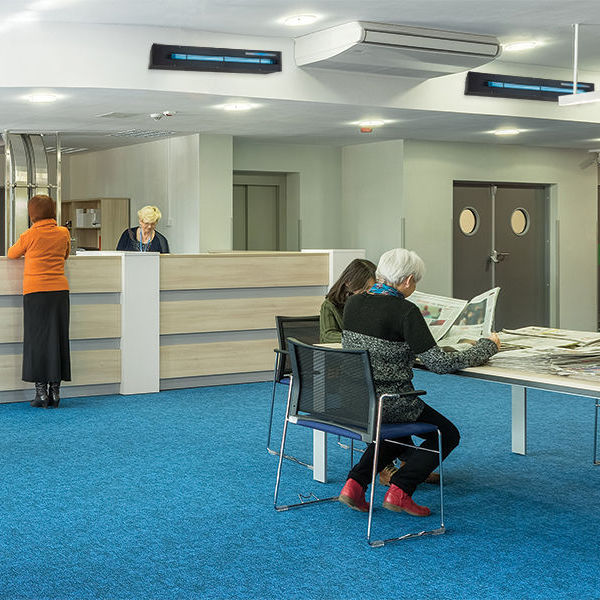

An exciting new way to reduce airborne bacteria and viruses in public spaces. These disinfection systems bathe the air overhead with germicidal UV-C light to kill germs that rise with warm air from respiration and other sources. Safe and effective, these systems reduce the possibility of infection from bio-contamination of the air, yet are safe to use even when the room is occupied. Available with fans for a forced air boost and ionization that freshens the air by breaking down odors and VOCs. Designed for commercial and institutional environments.
Below are just a few of the pathogens, allergens and airborne contaminants de-activated or relieved by UV-C light.
|
|
Two lamp lengths (22-inch or 33-inch), wall or ceiling-mounted units. Also available with or without an integrated fan and ionization.
HVAC contractors are not required for installation. This product can be powered using the provided 6 ft. power cord or hardwired into an electrical circuit. For a hardwired connection, it is recommended that a licensed electrician perform this task following all national and local electrical codes.
Important: A 7-foot minimum installation height is required to assure the safety of room occupants.
Description
Standalone UV-C air disinfection for occupied spaces.
Typical Applications
|
|
|
BioGardUV™ Features
- 22- and 33-inch lamp models each as either a wall mount or bi-directional ceiling mount unit.
- Focused 254nm germicidal UV wavelength
- 9,000 hour UV lamp life
- Silent convection operation
- Energy efficient
- Galvanized steel construction
- Powder coat finish
Literature Downloads
BioGardUV Models

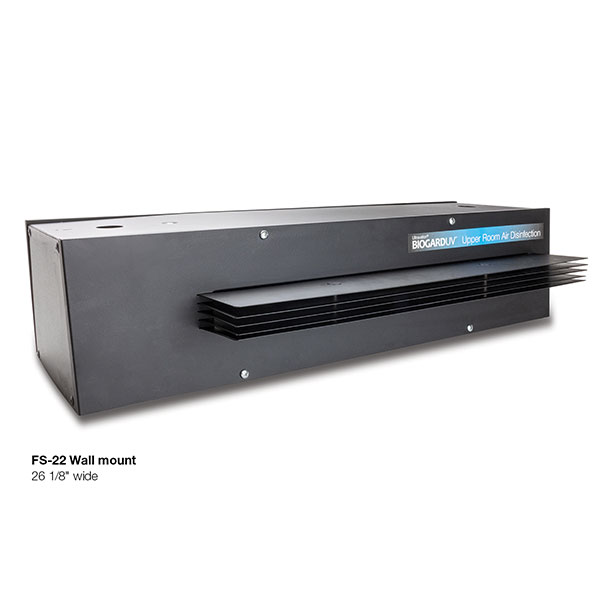

FS-22 and FS-33 models disinfect the air that naturally circulates in the room through convection. Warmed air from activity in the lower parts of the room including respiration rises, carrying pathogens into the disinfection zone above. The disinfected air cools and falls back to the lower regions. Available with 22″ or 33″ UV lamp lengths.

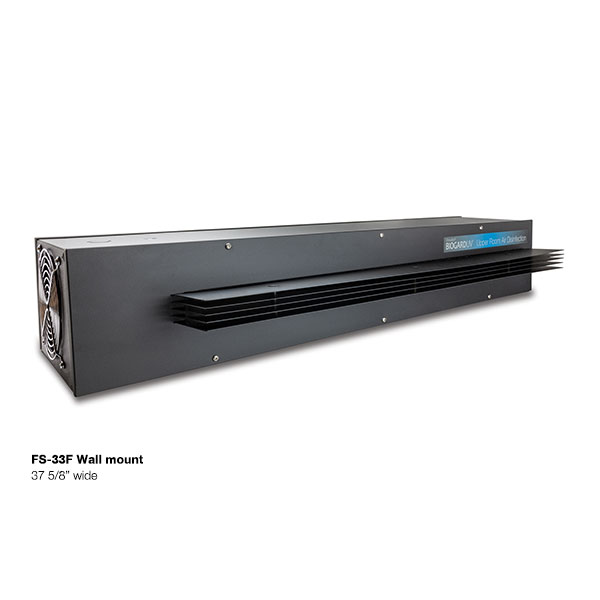

FS-22F and FS-33F models include a quiet (30db) fan that accelerates the airflow and directs it past the UV lamp at 67 cfm, and creates airflow across the upper part of the room where disinfection continues. The Bi-polar ionization breaks down odors and airborne toxins, augments disinfection and reduces micro particulates. Also available with 22″ or 33″ UV lamp lengths.

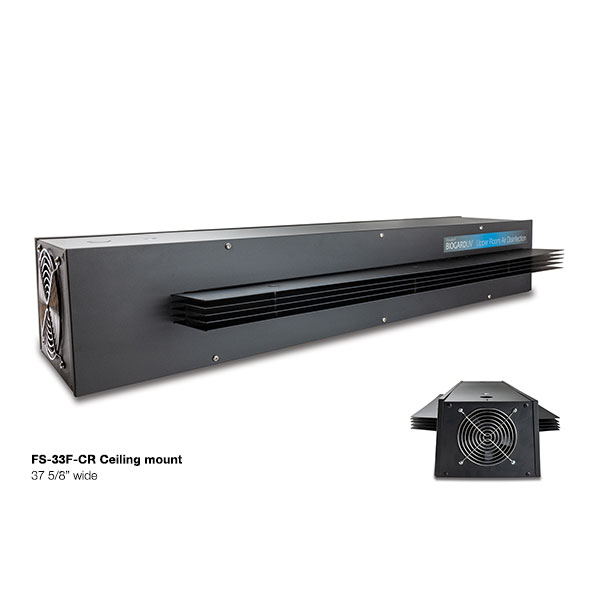

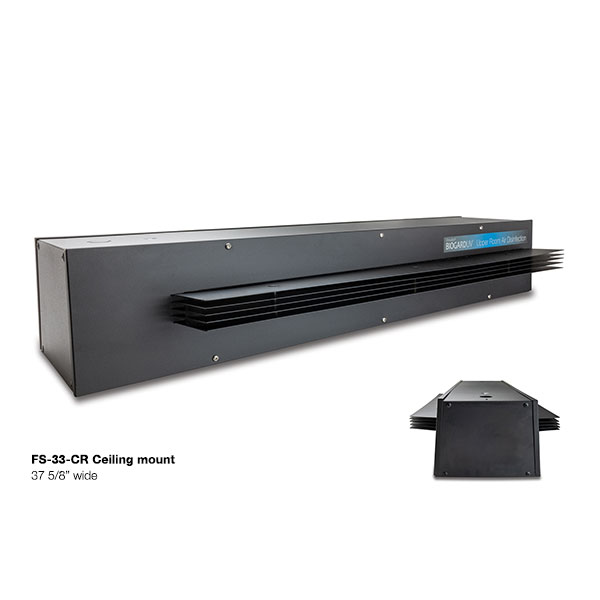

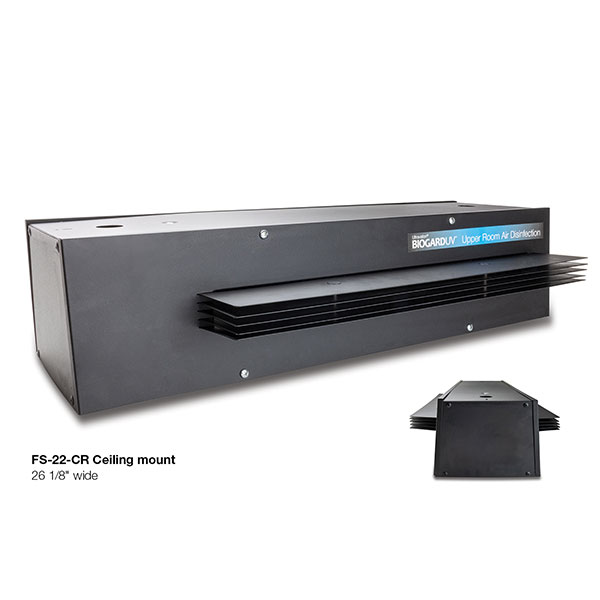

Ceiling mount models (models ending with -CM) install flush-to-ceiling or with optional pendents. Ceiling mount models create an extended disinfection zone to the front and the rear.
Important: The 7-foot minimum installation height requirement must be observed to assure the safety of the occupants.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Models: | FS-22, FS-33, FS-22-CR, FS-33-CR, FS-22F, FS-33F, FS-22F-CR, FS-33F-CR |
